Drive Tyre for On & Off-Road Applications

Drive Tyre
for On & Off-Road Applications

This drive tyre is designed for chip & cut resistance and has outstanding durability in on & off-road applications.

  • Anti-Chip & Cut

    Anti-Chip & Cut

  • Durability

    Durability

  • Traction

    Traction

Application

  • Long Haul

    Long Haul

  • Regional Haul

    Regional Haul

  • Urban

    Urban

  • On & Off-Road

    On & Off-Road

Features

  • Outstanding chip and cut resistance
  • Directional tread design for high traction
LR02

  • winter_ms

    M + S : Mud + Snow

  • winter_sf

    3PMSF : 3 Peak Mountain Snowflake

Vehicles & Position

Drive
Vehicles & Position Recommended position

Exceptional Durability and Even Wear

Chip & cut resistant tread compounds provide exceptional durability.

  • Anti-Chip & Cut

    Anti-Chip & Cut

  • Durability

    Durability

  • Traction

    Traction

Features

  • Outstanding chip and cut resistance
  • Directional tread design for high traction
LR53
  • Chip and Cut Resistant Compound
  • Self-Cleaning Tread for High Traction
  • Robust Fourth Steel Belt
  • Durability

    Durability

  • Wear life

    Wear life

Patterns

Chip and Cut Resistant Compound
Cut and chip resistant compound fights damage from curbing, cuts and abrasions.
Self-Cleaning Tread for High Traction
Self-cleaning lugs and open shoulder design offer exceptional traction and grit extraction.
Robust Fourth Steel Belt
Fourth steel belt for heavy duty use protects against shock and provides long casing life.

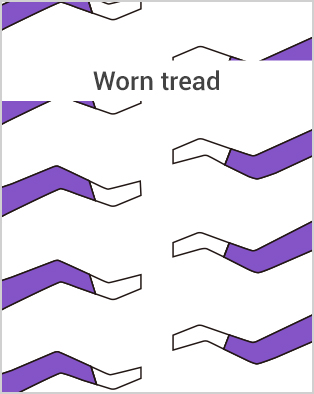

Regrooving Technical Data

Laufenn offers all the regrooving data suited to each tyre range, according to the specific features of the tread.

  • New tread
    New tread
  • Worn tread
    Worn tread
Size LI/SS Type
(TT/TL)
Tread Depth
(mm)
Regrooving Depth
(mm)
Regrooving Width
(mm)
13R22.5 156/150K TL 19.7 3.0 9 - 11
315/80R22.5 156/150K TL 20.6 3.0 9 - 11

Available Sizes

Size LI/SS PR Measured Rim Max.Air Max.Load Overall Diameter (mm) Section Width (mm) Tread Width (mm) Tread Depth (mm) Static Loaded Radius (mm) Tyre Labelling Class
S (PSI) D (PSI) S (bar) D (bar) S (kgs) D (kgs) S (lbs) D (lbs) Fuel Efficiency Wet Grip Noise Level
13R22.5 156/150K P18 9.75 127 127 8.8 8.8 4000 3350 8820 7390 1128 324 240 19.7 522 D C W1 72
315/80R22.5 156/150K P18 9.00 123 123 8.5 8.5 4000 3350 8820 7390 1090 315 250 20.6 501 D C W1 72

This is a comprehensive list of products produced. Some sizes may not be stocked locally but can be ordered as required.
