All-Position Tyre for Urban

All-Position Tyre for Urban

Urban tyre designed to suit the frequent stop-and-go driving of city buses.
It provides a high driving comfort throughout the tyre's life.

  • Fuel efficiency

    Fuel efficiency

  • Handling

    Handling

Application

  • Long haul

    Long haul

  • Regional haul

    Regional haul

  • Urban

    Urban

  • On & Off road

    On & Off

Features

  • Better wear resistance for city traffic.
  • Deep tread depth for extended life.
  • Durable casing for better retreadability and enhanced mileage.
  • Reinforced sidewall for extended casing life.
LF22

PDF download

Vehicles & Position

All Position
Vehicles & Position Recommended position Available position

Low heat generation in stop-and-go traffic

Reinforced sidewalls for increased durability and longevity.

  • Fuel efficiency

    Fuel efficiency

  • Handling

    Handling

Features

Full Sidewall Protector
Hole-type indicator allows operator to detect damage by the naked eye.
txt_tire_detail_02_01

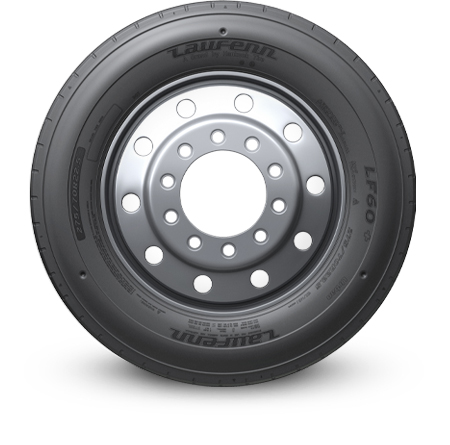

LF60
  • Optimised Tread Profile
  • Horizontal Kerf
  • Handling

    Handling

  • Durability

    Durability

  • Wear life

    Wear life

Patterns

Optimised Tread Profile
  • - Uneven wear minimised by the optimised kerf arrangement.
  • - Expanded shoulder width and adoption of pitch allocation for increased stiffness on the shoulder area.
  • - Pitch interval extension.
Horizontal Kerf
Horizontal kerfs inserted at the tread lib. Kerfs securing the equilibrium of centre and shoulder rib block stiffness.
Deeper Grooves
Deeper grooves for improved mileage and traction performance.

Regrooving Technical Data

Laufenn can provide customers with the best regrooving service using Hankooktire's enhanced technology.

  • New tread
    New tread
  • Worn tread
    Worn tread
Size LI/SS Type
(TT/TL)
Tread Depth
(mm)
Regrooving Depth
(mm)
Regrooving Width
(mm)
275/70R22.5 150/148J TL 17 3 9~11

Available Size

Size LI/SS PR Measured Rim Max.Air Max.Load Overall Diameter (mm) Section Width (mm) Tread Width (mm) Tread Depth (mm) Static Loaded Radius (mm) Tyre Labelling Class
S (PSI) D (PSI) S (bar) D (bar) S (kgs) D (kgs) S (lbs) D (lbs) Fuel Efficiency Wet Grip Noise Level
275/70R22.5 150/148J P18 8.25 131 131 9.0 9.0 3350 3150 7385 6945 967 280 230 17 452 D C 71
