S FIT AS

Ultra-High Performance All-Season tire

The ultra-high performance all-season S FIT AS is designed for drivers looking for
top-of-the-line performance and optimal fuel economy.

Comfort, Handling, Wear life

Features

  • Asymmetric tread design
  • All-Season: Optimized dry,
    wet and winter performance
  • Long tread life
  • Excellent stability and
    handling performance
  • Quiet, smooth driving across
    all road conditions
S FIT AS

PDF download

Performance

Designed as a general guideline to compare among the internal Laufenn products.

All Season

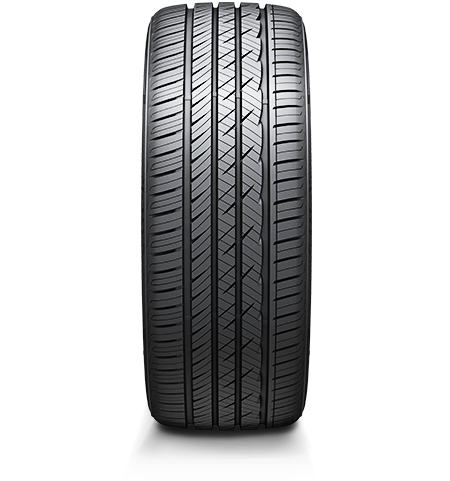

An advanced asymmetric tread pattern enables excellent
performance for any road or driving conditions.

Dry, Wet, Snow

Features

  • Asymmetric tread design
  • All-Season: Optimized dry,
    wet and winter performance
  • Long tread life
  • Excellent stability and
    handling performance
  • Quiet, smooth driving across
    all road conditions
S FIT AS
  • 4 Wide Straight Grooves, Streamlined Kerfs & Sipes
  • Tie-Bar
  • Drainage Inducement Groove Edges
  • 4 Channel Rib Type Design
4 Wide Straight Grooves
Four wide, straight tread grooves provide efficient water drainage in wet conditions for improved vehicle stability.
Streamlined Kerfs & Sipes
Streamlined Kerfs and sipes, developed with 3D hydroplaning simulation technology, enables more efficient water drainage on wet roads and improved grip in winter conditions.
Tie-Bar
Tie Bars that connect the shoulder blocks reinforce the stiffness of the shoulder tread for maximum cornering grip and minimized irregular wear.
Drainage Inducement Groove Edges
Drainage inducement groove edges help to optimize efficient wet braking.
4 Channel Rib Type Design
A 4-straight groove design improves stability on wet road surfaces.

Comfort

The S FIT AS helps drivers enjoy a comfortable drive by reducing noise and vibration.

Comfort, Noise

Features

  • Asymmetric tread design
  • All-Season: Optimized dry,
    wet and winter performance
  • Long tread life
  • Excellent stability and
    handling performance
  • Quiet, smooth driving across
    all road conditions
S FIT AS
  • Optimized Stiffness Distribution Design
  • Noise Reduction Rib Blocks
  • 3D Vibration Analysis Technology
Optimized Stiffness Distribution Design
An optimized five-variable pitch stiffness distribution tread block design ensures minimum vibration and noise as well as improved riding comfort.
txt_tier2_detail_01_01
Noise Reduction Rib Blocks
Rib block sections at the tire’s edge help to prevent noise generated by the road surface, ensuring a quiet ride.
3D Vibration Analysis Technology
The center and shoulder tread pattern of the S FIT AS have been designed using 3D Vibration Analysis Technology to ensure uniform driving performance and enhanced braking performance for more a predictable and reliable operation.

Safety

The S FIT AS is designed for smart drivers like you
who want to ensure both high mileage and the safety.

Braking, Durability, Handling

Features

  • Asymmetric tread design
  • All-Season: Optimized dry,
    wet and winter performance
  • Long tread life
  • Excellent stability and
    handling performance
  • Quiet, smooth driving across
    all road conditions
S FIT AS
  • Asymmetric Patten Design
  • Belt Edge Tape
  • 3R System (Multi-Tread-Radius Technology), SCCT LAYOUT
Asymmetric Pattern Design
Advanced asymmetric pattern design provides an excellent braking performance under wet and dry road conditions.
txt_tier3_detail_01_01
Belt Edge Tape
A folded belt edge tape design is incorporated between the tire’s two tread belts to improve handling performance in high speed.
txt_tier3_detail_02_01
3R System (Multi-Tread-Radius Technology)
The S FIT AS has been designed using the 3R system (Multi-Tread-Radius-Technology) which optimises the tire’s ground contact area ensuring reliability.
txt_tier3_detail_01_01
SCCT LAYOUT
A profile designed for minimized tire deformation ensures improved tire durability.

Maintenance of tire shape and ground pressure distribution.
txt_tier3_detail_01_01


Tire Structure

S FIT AS adopts new technology for premium vehicles,
engineered for exceptional control and a quiet and comfortable ride.

S FIT AS
  • Strong Single Stand Bead Wire
  • Long Mileage Compound
  • Equilibrium Carcass Line Design
  • Wide 2 Steel Belts
  • 1 or 2 Layer Jointless Nylon Full Cover
  • Folded Belt Edge Tape
  • Adoption of High-Hardness Bead Filler
Strong Single Stand Bead Wire
Improved bead uniformity.
Long Mileage Compound
Improves tread wear life.
Equilibrium Carcass Line Design
Minimizes tire deformation and allows greater sidewall stiffness.
Wide 2 Steel Belts
Ensures optimal tread stiffness for an improved handling performance.
1 or 2 Layer Jointless Nylon Full Cover
Maximises the tires contact with the road for improved handling and tread life (depends on size).
Folded Belt Edge Tape
Improves handling performance at high speeds.
Adoption of High-Hardness Bead Filler
Provides an improved handling and steering response.

Available Sizes

  • 16 inch
  • 17 inch
  • 18 inch
  • 19 inch
Tyre Sizes Header
Size Load Index Speed Symbol Ply Rating Sidewall Type
Tyre Sizes Body

Service

  • Tire Guide
  • Tier StructureLearn more
  • Tire SidewallLearn more
  • Sizes & SpecsLearn more
  • Load & SpeedLearn more
  • Care Guide
  • Tire PressureLearn more
  • MaintenanceLearn more
  • RotationLearn more
  • BalanceLearn more
  •
  • Wheel AlignmentLearn more
  • ReplacementLearn more

Tire guide

  • Tire structure
  • Tire sidewall
  • Sizes & specs
  • Load & speed

Tire structure

Tread, shoulder, sidewall, bead, carcass, belt, inner liner, and other components are structurally connected to complete the scientific structure of a tire.

Tread (the part that has direct contact with the road surface)

The tread consists of a thick layer of rubber which comes into direct contact with the road surface. It is highly resistant to fracture and shock in order to protect the carcass and belt located in the tire’s interior. Also, rubber with strong anti-inner abrasion features is used to increase the tire’s driving lifespan.

Shoulder (the shoulder of the tire)

Located between the tread and sidewall, the shoulder is the thickest part in a tire. Because of this, the shoulder is designed to quickly and easily dissipate heat that accumulates inside the tire while driving.

Sidewall (the side (lateral part) of the tire)

Located between the tire’s shoulder and bead, the sidewall protects the carcass on the inside and provides a comfortable riding experience due to its flexibility during driving. Also, the type of tire, size, structure, tread pattern, manufacturer, brand name, and other detailed information are marked on the sidewall.

Bead (the part that is in contact with the rim)

The bead wraps around the end of the cord and fixes the tire to the rim. It is made up of various parts including the bead wire, core, rubber and flipper. In general, the rim is slightly tightened so in the case of sudden reduction of air pressure while driving, the tire will not become unfastened from the rim.

Carcass (the framework of the tire)

The carcass is the framework of the tire, the most important part. The carcass refers to all layers made up of tire cord. It absorbs the tire’s internal air pressure, weight and shock.

Breaker or belt (the layer in between the tread and carcass)

The breaker is a cord layer placed in between the tread and carcass in a bias tire to protect the carcass. It absorbs external shock and prevents splintering or injury to the tread from coming into direct contact with the carcass. At the same time, the breaker prevents the separation of the rubber layer and carcass. The belt is a strong reinforcement layer located in the circumference in between the tread and carcass in radial tires. The belt’s functions are similar to those of the breaker but it also reinforces the strength of the tread by firmly tightening the carcass.

Inner liner

The inner liner substitutes for the tube in the tire’s interior and consists of rubber layer with low air permeability. The rubber layer generally consists of butyl, synthetic rubber, or polyisoprene type. The main function of the inner liner is to hold high-pressure air inside.

Tire sidewall

A tire’s sidewall protects the carcass on the inside and provides a comfortable riding experience due to its flexibility during cornering. Also, the type of tire, size, structure, tread pattern, manufacturer, brand name, and other detailed information are marked on the sidewall.

DOT (Department of transportation)


Tire size

Tire size notation is dependent on vehicle type but primarily consists of symbols and numbers denoting tire width, aspect ratio, diameter, load index and speed symbol that indicate tire performance.

Safety warning

This indicates important information related to tire use.

Place of origin

This indicates the region where the tire was manufactured.

Size & specs

The selection criteria for tires change depending on the type of vehicle you own and your style of driving. For a pleasurable driving experience, it is important to take these factors into consideration when selecting an the appropriate Laufenn tire for you.

Tire section width

Distance (mm) in a straight line between the sidewalls fitting to rim with standards air pressure and without loads.

Tire section height

Half of a distance which is difference between tire’s outer diameter and rim diameter.

Aspect ratio

The ratio of section height to section width.
*Aspect ratio = (Height) / (Width) X 100

Rim diameter

The distance between the rim bases in contact with the rim flange (almost identical to the tire’s interior diameter).

Tire overall diameter

Outer diameter of tire fitting to rim with standards air pressure and without loads.

Load & speed

The symbol that shows a tire's performance level consists of two parts: tire performance is marked by load index (LI) and speed symbol (SS). LI refers to the maximum load that one tire can support, and SS refers to the maximum speed that a tire can handle.

Load index

Load index is a numerical code stipulating the maximum load each tire can carry. For example, if the load index is 100, it means that a tire can carry a load up to 800kg.

Speed symbol

Speed symbol indicates the maximum speed at which the weight (with the exception of weight when speed is equal to or exceeds 210 km/h) designated by the manufacturing company can be supported by the tire.

Care guide

  • Tire pressure
  • Maintenance
  • Rotation
  • Balance
  • Wheel alignment
  • Replacement

Tire pressure

The tire inflation pressure is directly related to safety. Therefore, tire pressure must be checked regularly, and proper maintenance can prolong the lifespan of the tires. Learn about the importance of tire inflation pressure and how to check the pressure of your tires.

Importance of tire pressure

- Optimum air pressure should be maintained to ensure safety, driving performance, tire life and fuel cost.
- Tires have been known to lose up to one psi in a month (psi: pound per square inch) Therefore, it is important to check all tires, even the spare, at least once a month or before a long trip.

Recommended interval

Tire pressure should be checked every month.

Checking for optimum tire pressure

Laufenn tire recommends you to check your tire pressure once in a month.
The optimum air pressure level for your tire can be found on the inner side of the car door (on the tire placard), inside the fuel cap or in the car manual (the location of the sticker can vary according to country).
DO NOT compare your inflation pressure to its maximum pressure marked on the tire’s sidewall.

How to check tire pressure

1. Purchase a certified air pressure gauge or take your vehicle to a nearby service centre for a check-up.
2. Tires must be checked in a “cold” state (at least three hours after driving).
3. Insert the gauge into the valve.
4. Compare the measured air pressure level with the level listed on the tire placard.

- If the measured figure is higher, release air until the figure matches what is listed on the tire placard.
- If the measured figure is lower, insert more air until the figure matches what is listed on the tire placard.

Maintenance

Tire wear directly affects the driver’s safety and the performance of the vehicle. It is essential for the driver to be well-informed about how to check for tire wear regularly.

Importance of checking for tire wear

The deeper the groove, which is on the surface of the tire, the more grip a tire will have. You can prevent danger of unexpected accidents by checking for tire wear on a regular basis.

Recommended interval between check-ups

Laufenn tire recommends that you check for tire wear once a month. Also, make sure to do a check once more after long distance travel.

Checking for tire wear with tire tread wear indicator

You can check for the depth of the groove by using a tire tread depth gauge or by observing the tread wear indicator on the side of the tire. To ensure optimum safety and performance, tires should be replaced when the tire groove wears below 2mm to 3mm.

Rotation

Periodic rotation prevents uneven wear, prolonging the life of your tires. Learn about the importance of tire rotation and how to rotate them.

The importance of tire rotation

Periodic tire rotation helps extend the life of your tires and improve performance level. For your safe driving and saving money, please refer to the rotation method below.

When to rotate your tires

In general, it is the best to rotate tires every six months or 10,000km. To change tire position to the other position ensure even wear and long life of tire.

Balance

Tire balance must be checked if there is unexpected vibration or noise from a tire. Learn about the importance of tire balance, which is necessary for a comfort driving experience and when to inspect a balance.

The importance of tire balance

Tire balancing is a process of compensating for the weight of the tire and wheel after assembly. If not properly balanced, it increases vibration and cause stress on your vehicle.

When to inspect for tire balance

If you feel a vibration from a tire, visit a mechanic where he or she will attach a balancing weight to the exterior or interior of the wheel to counteract centrifugal forces acting on the heavy areas when the wheel is turning.

How to balance tire and wheel

To balance the tire and wheel assembly, a balance weight can be used when a certain spot is lighter or heavier than it should be.

Wheel alignment

To prevent vibration, skidding, noise, and wear, wheel alignment inspection is necessary. Learn about useful information regarding wheel alignment and how to perform an inspection.

The importance of wheel alignment

The purpose of wheel alignment is to adjust front-wheel handling while driving. If wheel alignment is off, tire life is shortened while car and mileage performance also decrease.

When to check wheel alignment

Laufenn tire recommends to inspect wheel alignment every year or for every 20,000km. The inspection is required

- after a car accident.
- after tire replacement.
- when there is uneven wear on a shoulder.
- when the steering wheel is unstable and/or vibrating
- when riding is uncomfortable or fuel efficiency gets worse

Replacement

In order to ensure a safe and comfortable ride, it’s strongly recommended all driver to know when and how to replace tires.

The importance of tire replacement

Timely replacement of tire is critical for driver safety and also influences vehicle lifespan and performance.

When to replace a tire

- In case of severe tire erosion.
- In case repair is impossible due to tire puncture.

How to replace a tire

In the case of a damaged tire and wheel, professional consultation is recommended. Tire replacement should only be done by a trained and highly experienced technician.

Tips for tire replacement

- It is the best to replace two tires on one axle at the same time.
- Only replacement of one tire of two on the same axle usually causes to unbalance the vehicle.
