A Brand by Hankook Tyre

laufenn

LF91

LF91

Trailer Tyre for Regional Applications

  • Wear Life

    Wear Life

  • Durability

    Durability

  • Fuel Efficiency

    Fuel Efficiency

Application

Regional Haul

Regional Haul

Features

  • Tread profile design optimised for long even wear
  • Solid shoulder design optimised for improved durability
winter_ms winter_sf

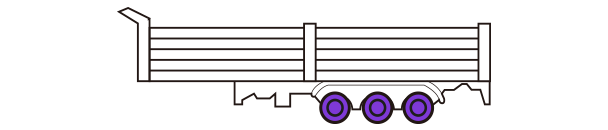

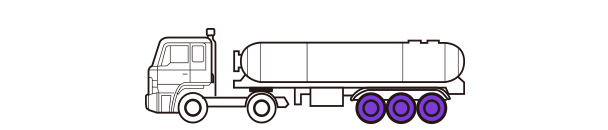

Vehicles & Position

Recommended position

Trailer

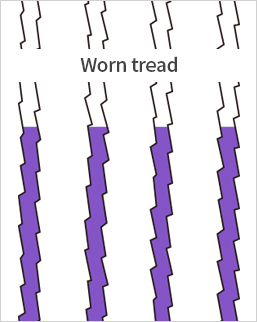

Regrooving
Technical Data

Laufenn offers all the regrooving data suited to each tyre range, according to the specific features of the tread.

  • New tread

    New tread

  • Regrooved tread

    Regrooved tread

Regrooving Technical Data
Size
(LI/SS)		 Type (TT/TL) Tread Depth (mm) Regrooving Depth
(mm)		 Regrooving Width
(mm)
11R22.5
(148/145L)		 TL 12.6 - -
235/75R17.5
(143/141J)		 TL 12.6 - -
275/70R22.5
(148/145M)		 TL 13.1 - -

Available Sizes

11R22.5
  • LI/SS

    148/145L

  • PR

    P16

  • Measured Rim

    8.25

  • Max.Air S
    (PSI/bar)

    120/8.3

  • Max.Air D
    (PSI/bar)

    120/8.3

  • Max.Load S
    (kgs/lbs)

    3000/6610

  • Max.Load D
    (kgs/lbs)

    2725/6005

  • Overall
    Diameter
    (mm)

    1043

  • Section
    Width
    (mm)

    278

  • Tread
    Width
    (mm)

    204

  • Tread
    Depth
    (mm)

    12.6

  • Static Loaded
    Radius
    (mm)

    486

  • Fuel
    Efficiency

    -

  • Wet Grip

    -

  • Noise Level

    -

Size

Apply
