A Brand by Hankook Tyre

Laufenn

All-Position Tyre for Regional Applications

All-Position Tyre
for Regional Applications

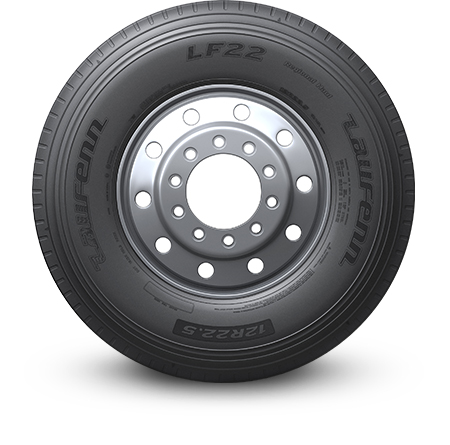

LF22 is an all-position tyre designed for long life steer axle service in regional applications.

  • Wear life

    Wear life

  • Handling

    Handling

  • Anti-Chip & Cut

    Anti-Chip & Cut

  • Fuel Efficiency

    Fuel Efficiency

Application

  • Long haul

    Long Haul

  • Regional haul

    Regional Haul

  • Urban

    Urban

  • On & Off road

    On & Off-Road

Features

  • Exceptional handling and responsiveness on all road conditions
  • Chip & cut resistant tread compounds
LF22

  • winter_ms

    M + S : Mud + Snow

  • winter_sf

    3PMSF : 3 Peak Mountain Snowflake

Vehicles & Position

All-Position
Vehicles & Position Recommended position Available position

Improved Fuel Efficiency

Innovative compound mixing system provides high fuel efficiency and wear resistance.

  • Wear life

    Wear life

  • Handling

    Handling

  • Anti-Chip & Cut

    Anti-Chip & Cut

  • Fuel Efficiency

    Fuel Efficiency

Features

Innovative Mixing System (IMS)
IMS ensures high mileage and fuel efficiency by increasing the strength of the compound and lowering heat generation.
txt_tire_detail_02_01
Innovative Mixing System (IMS)
IMS ensures high mileage and fuel efficiency by increasing the strength of the compound and lowering heat generation.
txt_tire_detail_02_02
New Contour Design
New contour design optimises the tyre footprint for better wear life under high contact pressure.
txt_tire_detail_02_03

LF22
  • Zigzag Grooves
  • Improved Shoulder Design
  • Full Depth Sipes
  • Anti-Chip & Cut

    Anti-Chip & Cut

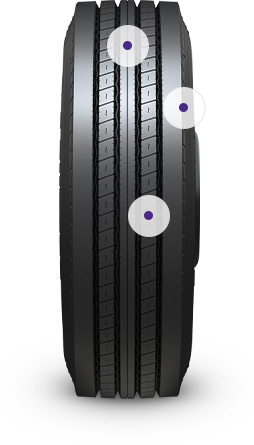

Patterns

Zigzag Grooves
Zigzag grooves help provide exceptional handling by improving water evacuation in new and worn tyre conditions.
Improved Shoulder Design
Improved shoulder design fights damage from chipping and tearing.
Full Depth Sipes
Full depth sipes deliver improved grip in challenging driving conditions.

Regrooving Technical Data

Laufenn offers all the regrooving data suited to each tyre range, according to the specific features of their tread.

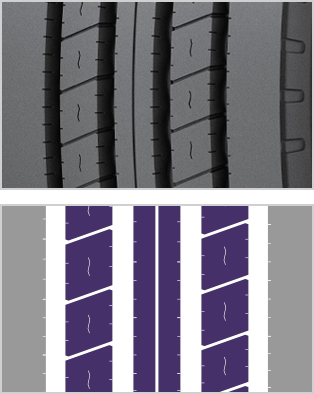

  • New tread
    New tread

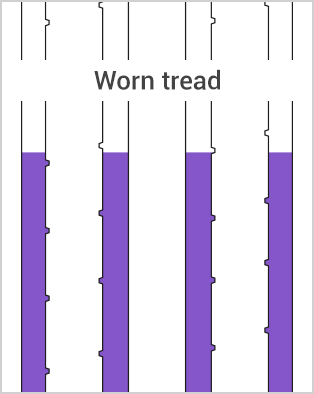

  • Regrooved tread
    Regrooved tread
Size LI/SS Type
(TT/TL)		 Tread Depth
(mm)		 Regrooving Depth
(mm)		 Regrooving Width
(mm)
295/80R22.5 154/149M TL 15.5 3.0 7 - 9
385/65R22.5 160K TL 14.1 3.0 10 - 12

Available Sizes

Size LI/SS PR Measured Rim Max.Air Max.Load Overall Diameter (mm) Section Width (mm) Tread Width (mm) Tread Depth (mm) Static Loaded Radius (mm) Tyre Labelling Class
S (PSI) S (bar) D (PSI) D (bar) S (kgs) S (lbs) D (kgs) D (lbs) Fuel Efficiency Wet Grip Noise Level
295/80R22.5 154/149M 18 8.25X22.5 123 8.5 123 8.5 3750 8269 3250 7166 1050 305 250 15.5 489 D B 71
385/65R22.5 160K 20 8.25X22.5 130 9 130 9 4500 9923 - - 1069 382 308 14.1 497 C B 71
